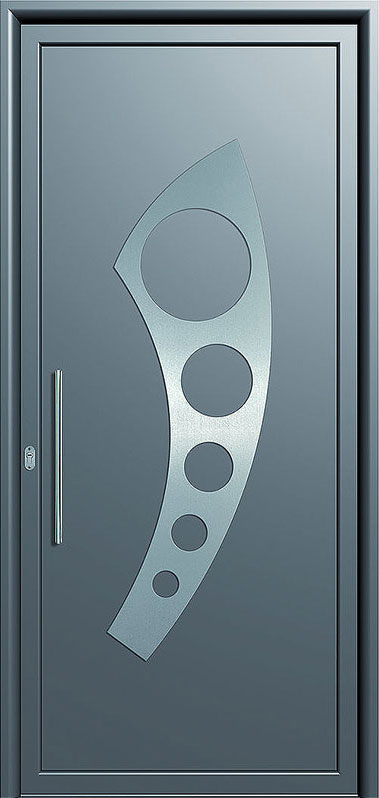

XCLUSIVE 88i2 MAIN ENTRANCE
Optimized foam-filled insulation zone (ELVIAL I2 Technology) that ensures excellent isothermal flow of the window.
Certified Security Level RC3 (WK3) thanks to its compatibility with wide range of security and anti-burglar locks.
3 Axis polyamide alignment corners with channels for glue inflow, for extra rigidity of the final product.
3 Level Sealing System with EPDM gaskets and continuous central gaskets on Sash, Frame and Threshold.
Description
Outstanding Thermal Insulation
Uf > 1.69 W/m2K
Ud*: 1.2 W/m2K with panel 28mm (Up: 1.0)
Ud*: 0.95 W/m2K with panel 77mm (Up: 0.6)
Three insulation levels:

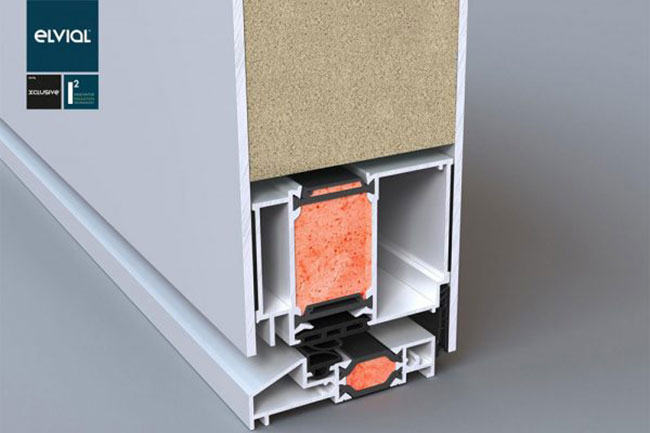

Optimized foam-filled insulation zone (ELVIAL I2 Technology) that ensures excellent isothermal flow of the window.
Multi-chamber polyamide bars, maximum size 34mm with glass fibers reinforcement 25%, (PA6.6 25 GF), for excellent insulation and extra rigidity.
Specially designed central gasket with 5 cavities that covers all the polyamide surface and glazing/panel gaskets with fins, for effective heat transfer minimization.
Security - Durability for a lifetime
Certified Security Level RC3 (WK3) thanks to its compatibility with wide range of security and anti-burglar locks. Compatible with electronic access control systems. Locking System: Locks “U” type 24x6mm.
HH: Width up to 1.450mm /sash,
Height up to 2.550mm
Weight up to 150 kg /sash
T4: Glazing up to 60mm Panel up to 77mm
Width up to 1.400mm /sash,
Height up to 2.350mm
Weight up to 220 kg /sash
Perfect functionality:
3 Axis polyamide alignment corners with channels for glue inflow, for extra rigidity of the final product.
Re-enforced profile wall thickness (1.5 – 1.8mm) with high values of moment of inertia, suitable for wide and complex constructions.
ELVIAL Advanced Sealing System
3 Level Sealing System with EPDM gaskets and continuous central gaskets on Sash, Frame and Threshold.
EPDM corners for both central gaskets and the outer glazing gasket.
Innovative Mullion End Cap made of TPV material, sealing perfectly onto the profile, ensuring excellent water tightness.
BASIC DEPTH: FRAME: 77mm SASH: 77mm
MINIMUM FACE WIDTH: Κ-Φ: 141.2mm Τ: 82mm
EXTRA FEATURES
Anti-distortion glass fiber polyamides used on ALL sash profiles, in order to avoid the malfunctions caused by the profile expansion and contraction due to extreme temperature changes (banana effect).
Easy-access threshold of 20mm.
Option of automatic wind break.
Optional use of various hinges (hidden hinge, external heavy duty hinge).
Design Freedom
Upgraded face-fitted door constructions that add value on the building’s image.
Inward-opening and Outward opening versions are available in ALL typologies:
Single sash doors
Double sash doors
With fixed parts and/or with skylight
Leaf-enclosing infills are available on one side or both sides of the sash
Customized Dr. Hann Rollenband hinges available, in addition toexternal and cocealed ones.
